QHA full-cassette awning

A compact cassette, integrated arm lighting and a clear façade when retracted. Explore the QHA size matrix and mounting details.

Enquire about this model Dimensions & configuration

Dimensions & configuration

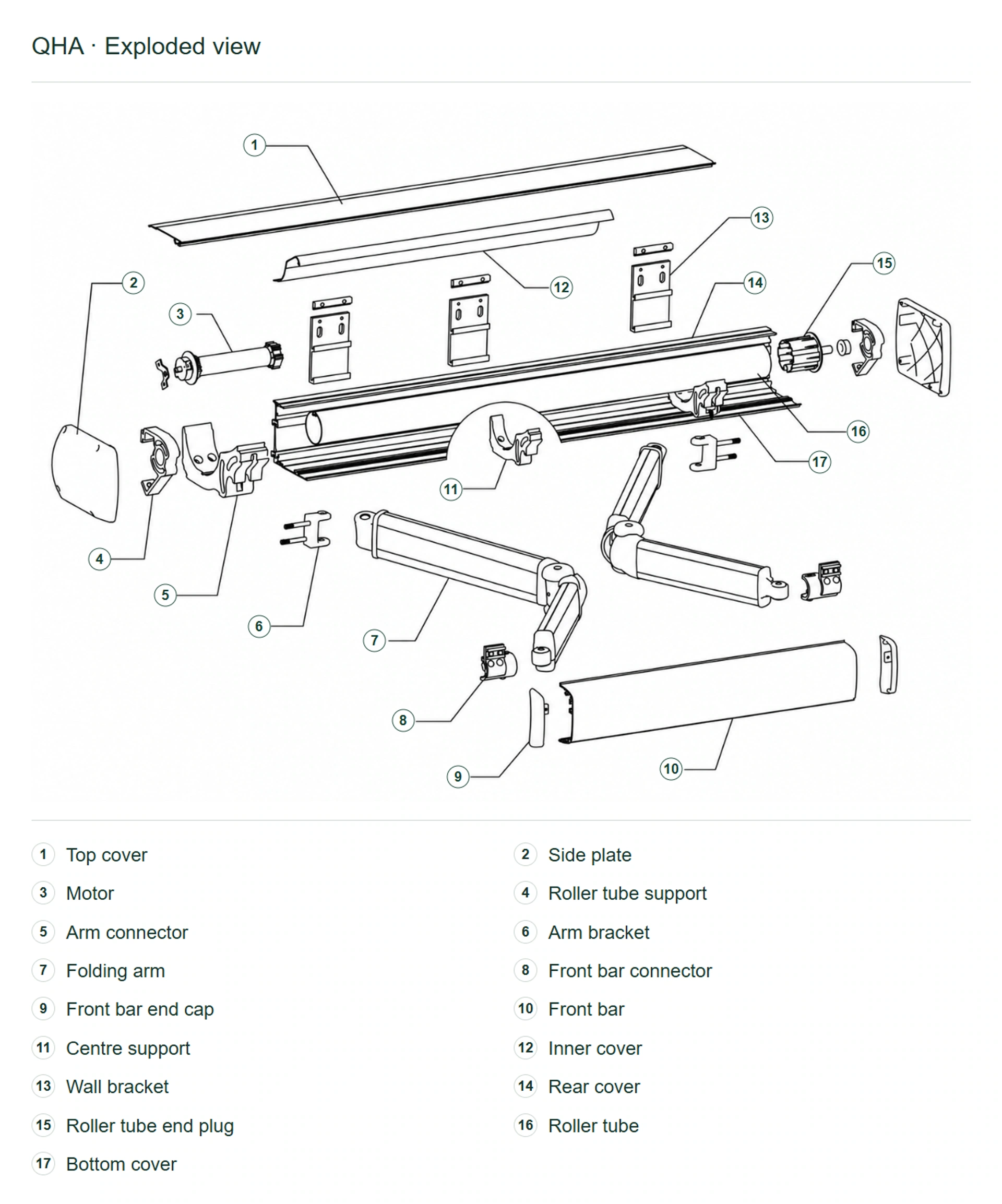

An enclosed aluminium cassette protects the fabric and chain-linked articulated arms when retracted. Confirm the Sauleda fabric reference and motor package with your order.

2-6 mListed width range

1.5-3.5 mProjection in size table

Width and projection selection · Maximum listed width 6 m
Projection	Minimum listed width
1.5 m	2 m
2 m	3 m
2.5 m	3.5 m
3 m	4 m
3.5 m	4.5 m

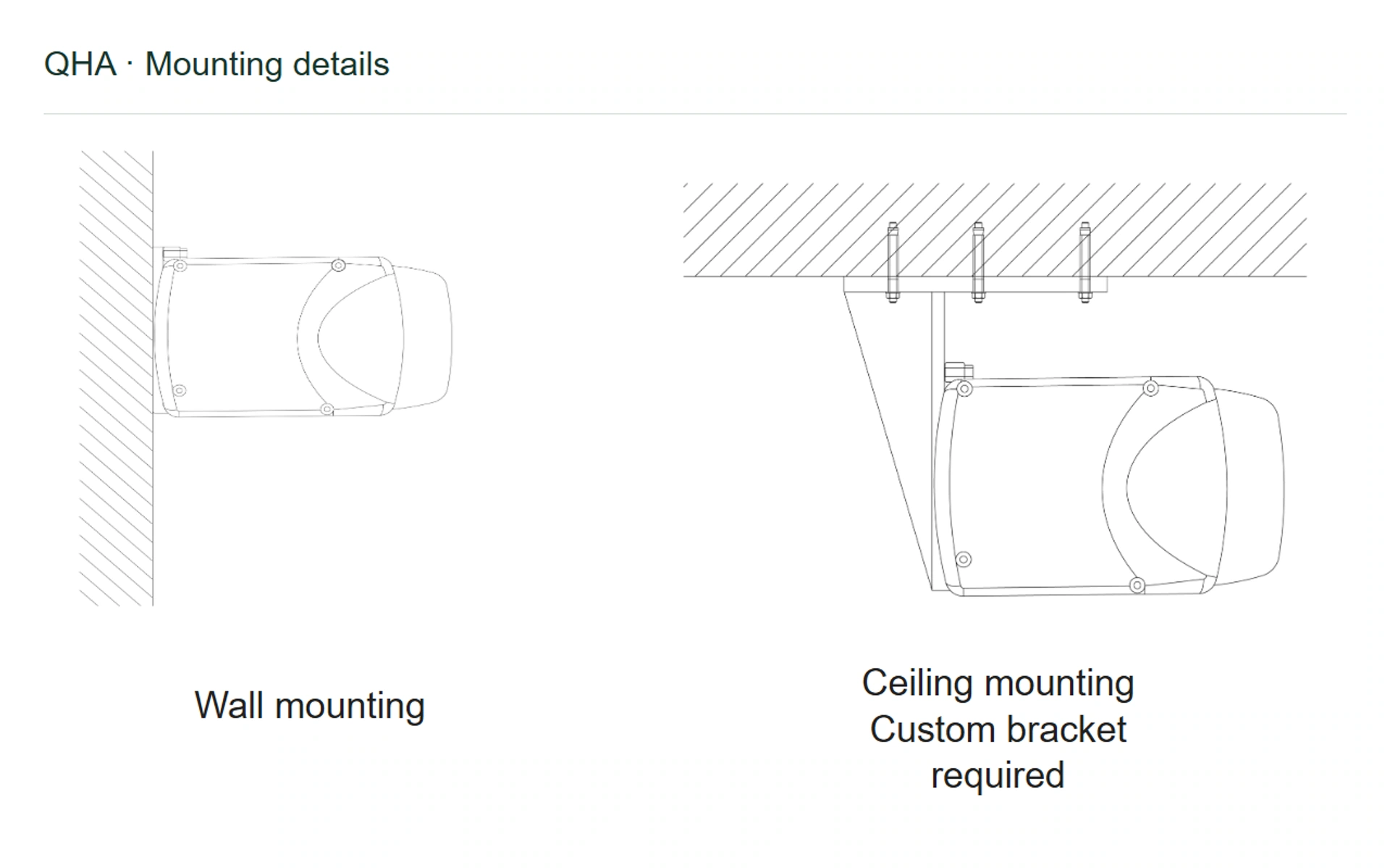

The 3.5 m projection requires a width of at least 4.5 m and confirmation of availability. Ceiling mounting requires custom brackets.

Design & construction

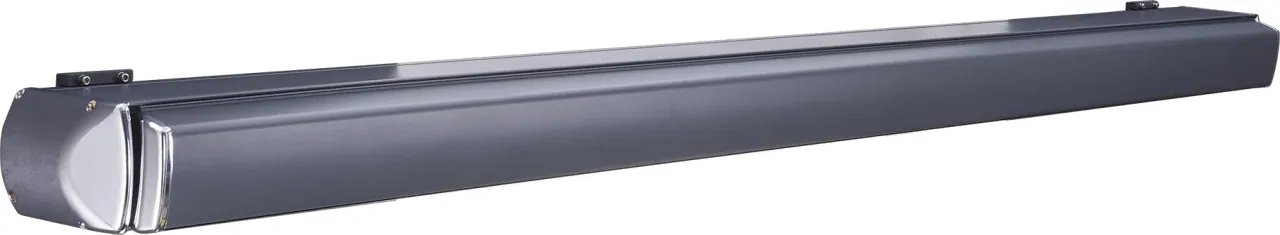

QHA full-cassette awning · Component detail

Configuration options

Fabric and colour

Approve a physical fabric sample and its reference code. Confirm whether the quoted fabric is standard or optional, with its own care and warranty terms.

Motor and lighting

Specify the motor brand, voltage, control method and lighting circuit. Remotes, sensors and app control need a compatible configuration; list them individually.

Fixings and handover

Agree the mounting substrate, bracket layout and access for servicing. Obtain operating limits, installation drawings and a written scope covering supply, transport and site work.
