QHB full-cassette awning

An enclosed cassette with manual or motorised operation and optional arm lighting. The brochure matrix includes projections up to 4 m.

Enquire about this model Dimensions & configuration

Dimensions & configuration

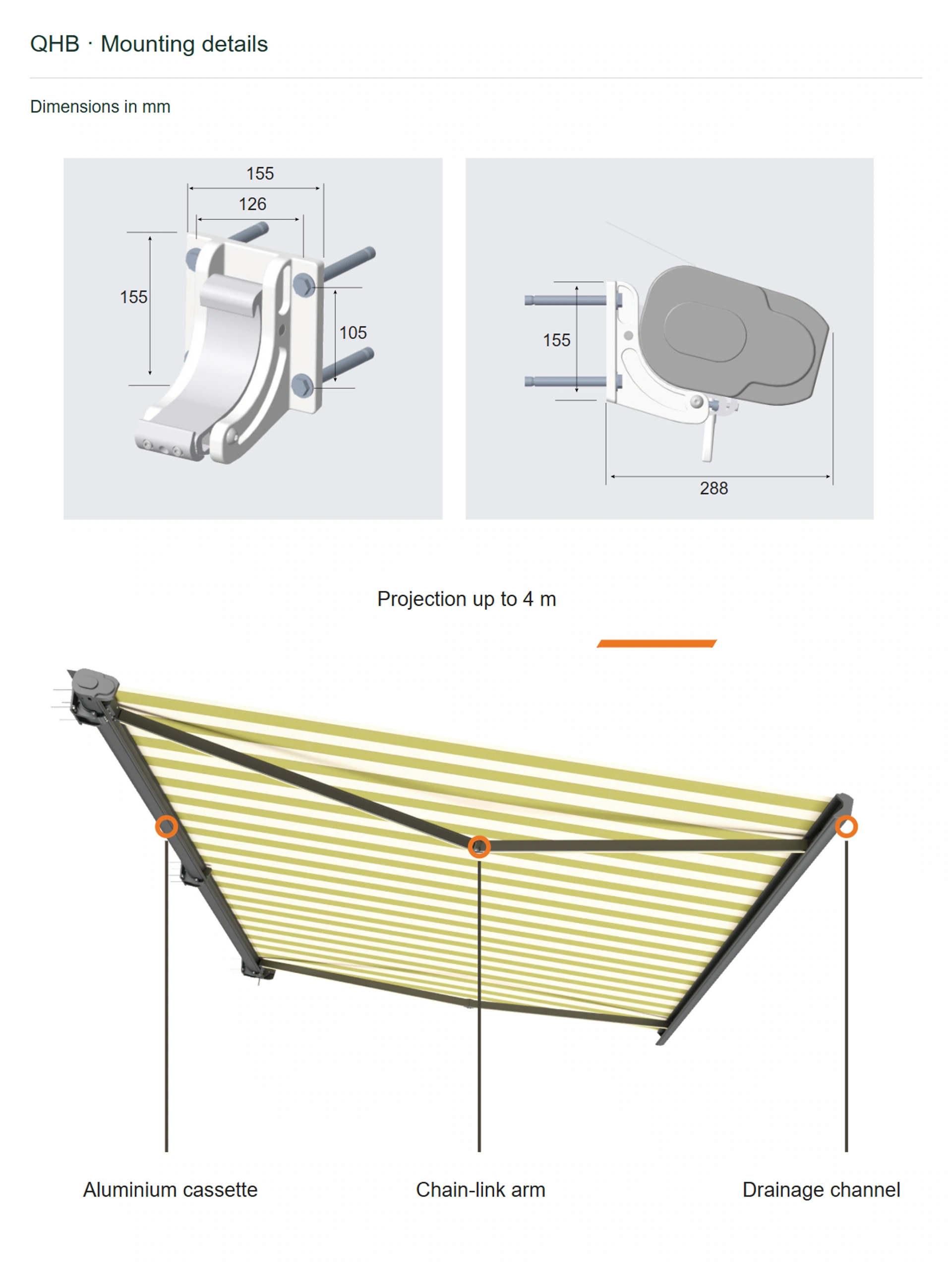

A protective cassette, articulated arms, alloy spring components and adjustable connections form the QHB system. Explore fabric colours and the compact profile when retracted.

2-6 mListed width range

1.5-4 mListed projection range

Width and projection selection · Maximum listed width 6 m
Projection	Minimum listed width
1.5 m	2 m
2 m	2.5 m
2.5 m	3 m
3 m	3.5 m
3.5 m	4 m
4 m	4.5 m

A 4 m projection requires at least 4.5 m width. Arm lighting is optional; select fabric, manual or motorised operation, and mounting brackets with your order.

Design & construction

Configuration options

Fabric and colour

Approve a physical fabric sample and its reference code. Confirm whether the quoted fabric is standard or optional, with its own care and warranty terms.

Motor and lighting

Specify the motor brand, voltage, control method and lighting circuit. Remotes, sensors and app control need a compatible configuration; list them individually.

Fixings and handover

Agree the mounting substrate, bracket layout and access for servicing. Obtain operating limits, installation drawings and a written scope covering supply, transport and site work.
