T-series retractable folding roofs

Rail-guided fabric roofs for terraces and hospitality spaces. Compare T700, T900 and T1200 profiles, projection limits and support arrangements.

Enquire about this model Dimensions & configuration

Dimensions & configuration

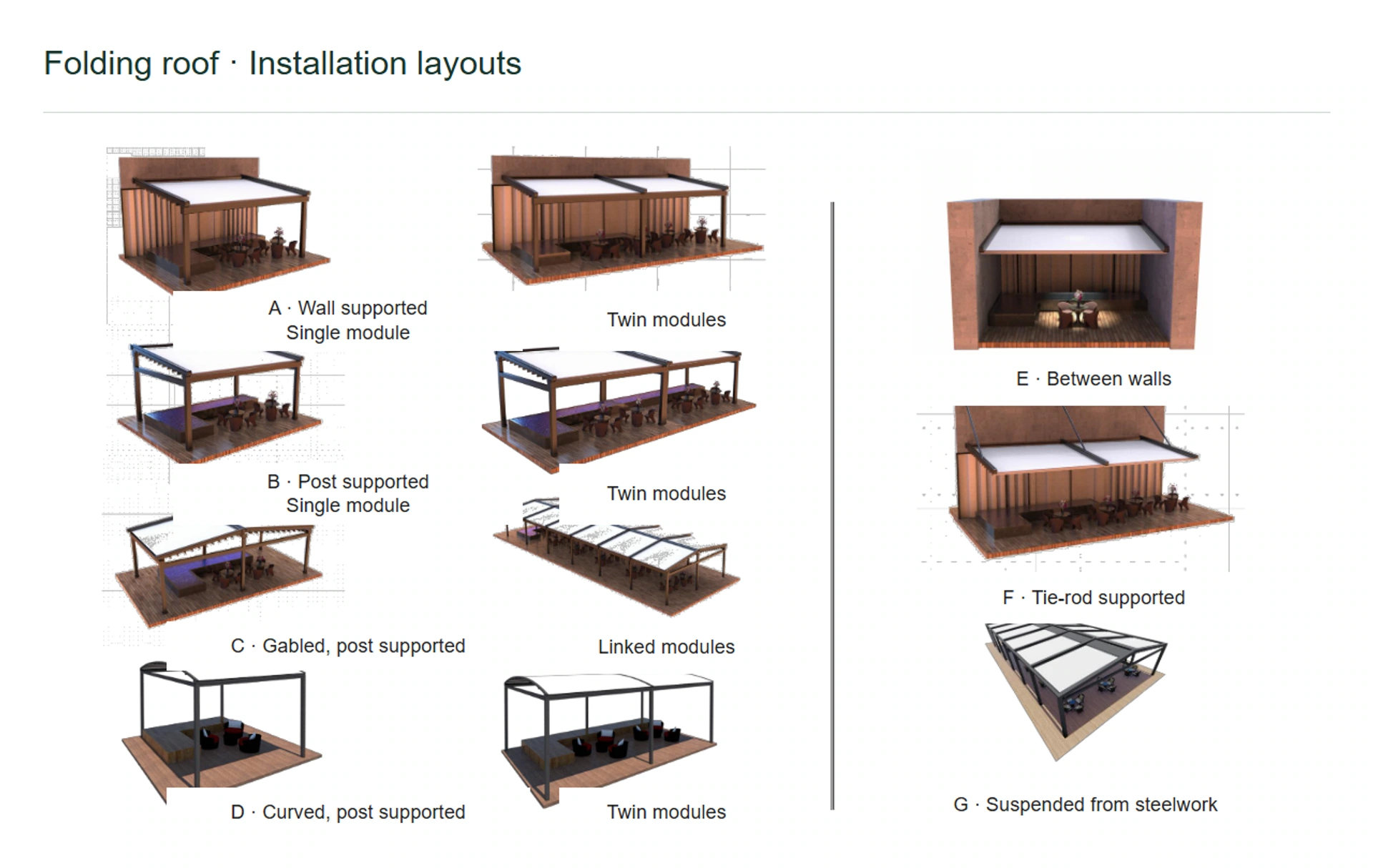

Choose wall-supported, post-supported, double-pitch or steel-supported layouts. Compare T700, T900 and T1200 by projection, rail section and available installation space.

T700Projection up to 7 m

T900Projection up to 9 m

T1200Projection up to 12 m; area ≤72 m²

T700

Maximum listed width: 8 m
Maximum projection: 7 m
Guide rail section: 130 × 70 × 2.5 mm
Post section: 125 × 90 × 2 mm
Gutter section: 150 × 125 × 2.5 mm

T900

Maximum listed width: 8 m
Maximum projection: 9 m
Guide rail section: 170 × 98 × 2.5 mm
Post section: 125 × 90 × 2 mm
Gutter section: 150 × 125 × 2.5 mm

T1200

Maximum listed width: 8 m
Maximum projection: 12 m
Guide rail section: 200 × 130 × 2.5 mm
Post section: 170 × 170 × 3 mm
Gutter section: 180 × 150 × 3 mm

Area must also be ≤72 m².

T1200: width ≤8 m, projection ≤12 m and total unit area ≤72 m² must all be met. Standard PVC fabric; Sauleda available as an option.

Design & construction

Configuration options

Fabric and colour

Approve a physical fabric sample and its reference code. Confirm whether the quoted fabric is standard or optional, with its own care and warranty terms.

Motor and lighting

Specify the motor brand, voltage, control method and lighting circuit. Remotes, sensors and app control need a compatible configuration; list them individually.

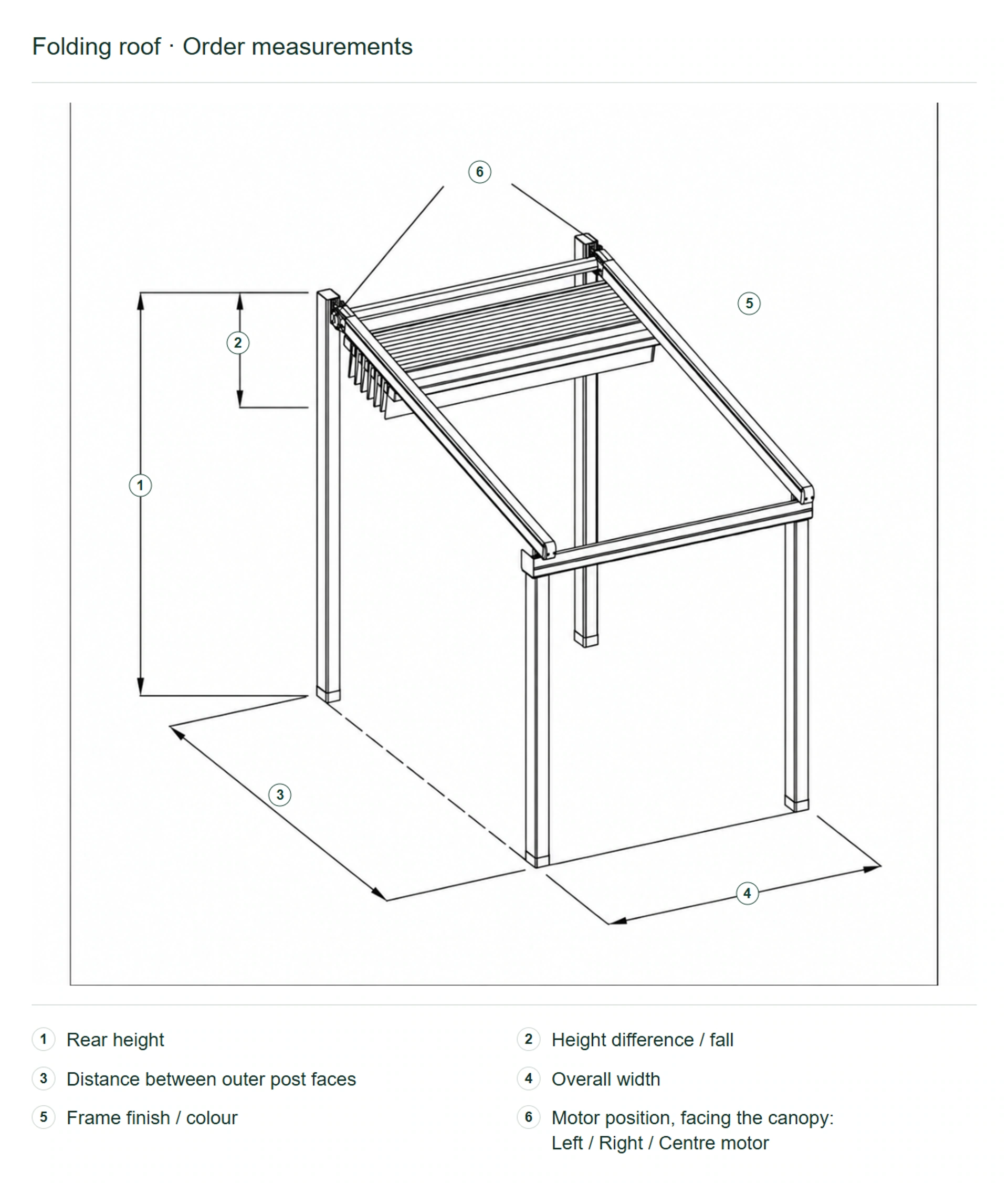

Fixings and handover

Agree the mounting substrate, bracket layout and access for servicing. Obtain operating limits, installation drawings and a written scope covering supply, transport and site work.
