QHC full-cassette awning

The 2025 brochure expands projection to 4 m and lists widths up to 7 m, with revised arm supports and a concealed fabric enclosure.

Enquire about this model Dimensions & configuration

Dimensions & configuration

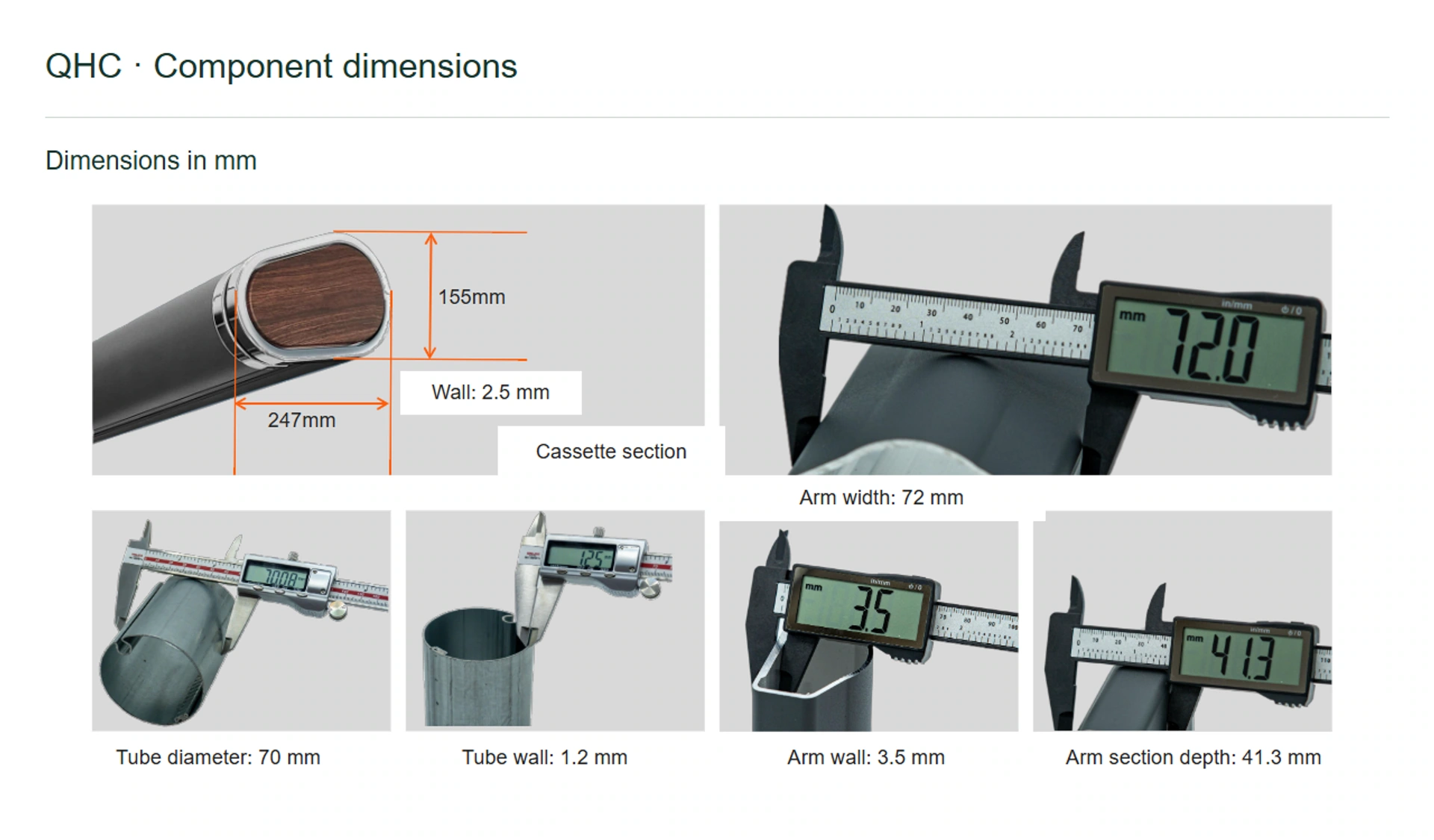

QHC uses a 247 × 155 mm cassette section, 3.5 mm arm wall thickness and a 6063-T6 front profile.

2.05-7 mListed width range

1.5-4 mListed projection range

247 × 155 mmCassette section

3.5 mmArm wall thickness

Width and projection selection · Maximum listed width 7 m
Projection	Minimum listed width
1.5 m	2.05 m
2 m	2.55 m
2.5 m	3.05 m
3 m	3.55 m
3.5 m	4.05 m
4 m	4.55 m

The 7 × 4 m configuration uses three arms and three wall brackets. Confirm LED colour temperature when ordering.

Design & construction

Configuration options

Fabric and colour

Approve a physical fabric sample and its reference code. Confirm whether the quoted fabric is standard or optional, with its own care and warranty terms.

Motor and lighting

Specify the motor brand, voltage, control method and lighting circuit. Remotes, sensors and app control need a compatible configuration; list them individually.

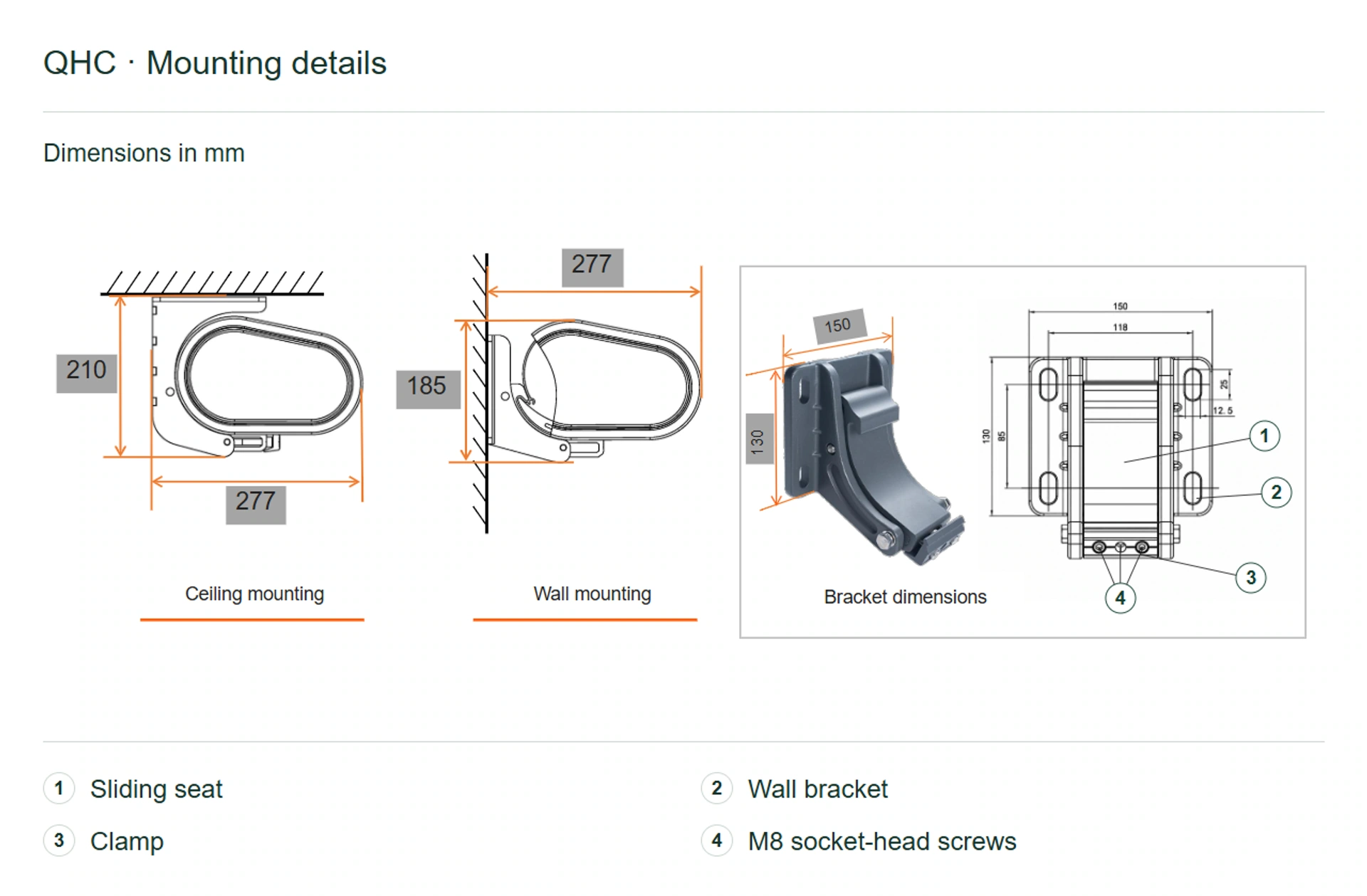

Fixings and handover

Agree the mounting substrate, bracket layout and access for servicing. Obtain operating limits, installation drawings and a written scope covering supply, transport and site work.
